HOME ENERGY STORAGE SYSTEM

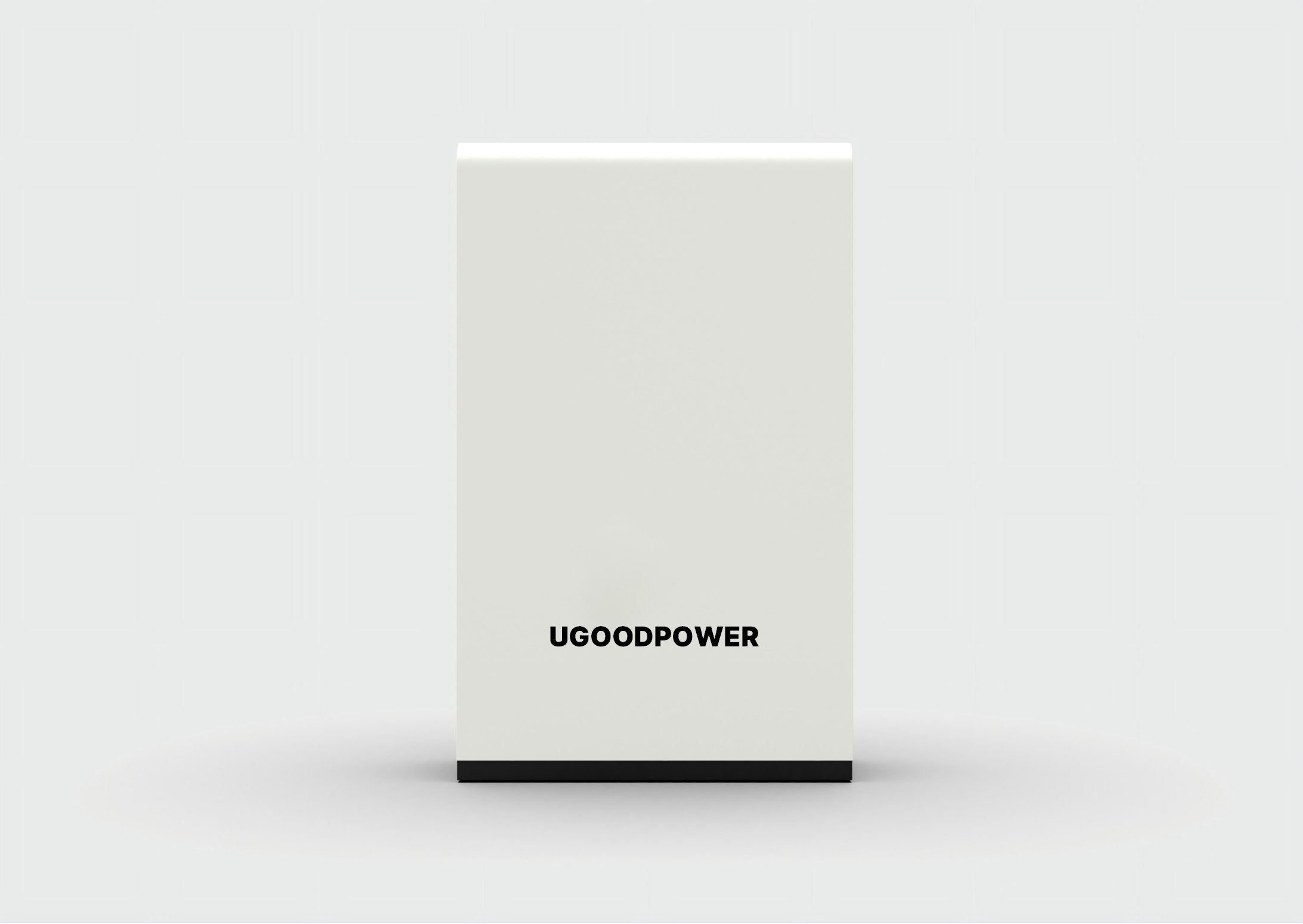

UGOOD 16kWh
家庭储能系统Home Energy Storage

磷酸铁锂（LiFePO4）技术，16.08kWh 澎湃储能，8000+ 次循环寿命，为现代家庭提供全天候绿色能源保障。 Powered by LiFePO4 technology, delivering 16.08kWh capacity and 8000+ cycle life, providing 24/7 green energy for modern homes.

查看技术规格View Specifications 系统方案咨询System Consultation

核心参数Key Specifications

以磷酸铁锂技术为核心，打造高安全、长寿命的家庭储能解决方案。 Built on LiFePO4 technology for a high-safety, long-life home energy storage solution.

16.08kWh

总储能容量Total Energy Capacity

满足一般家庭 1–2 天离网用电需求Powers an average home for 1–2 days off-grid

51.2V

系统工作电压System Voltage

适配主流光伏混合逆变器Compatible with mainstream PV hybrid inverters

314Ah

单体电芯容量Cell Capacity

16S1P 组合架构，高效一致16S1P configuration for high consistency

8000+次cycles

充放电循环Cycle Life

70% 标称容量，25±2°C 标准测试70% nominal capacity at 25±2°C standard test

系统拓扑示意图System Topology Diagram

INTEGRATED SYSTEM

光储一体，智能管理Solar-Storage Integration, Smart Management

UGOOD 16kWh 储能系统通过 RS485/CAN 双通讯接口与光伏混合逆变器无缝联动，实现太阳能发电、电网供电、储能电池与家庭负载的一体化管理。The UGOOD 16kWh system connects with PV hybrid inverters via RS485/CAN dual interfaces for integrated management of solar generation, grid supply, battery storage, and home loads.

系统支持 4G/WiFi 云端接入，配合专属 APP，用户可随时随地监控发电、储电、用电全流程数据。Supports 4G/WiFi cloud connectivity with a dedicated app for remote monitoring of generation, storage, and consumption data.

最大 160A 充放电电流，瞬时响应大功率负载Max 160A charge/discharge for instantaneous high-power response

云端监控平台 + APP 远程控制Cloud monitoring platform + APP remote control

多重 BMS 保护：过压、欠压、过流、短路、温度保护Multi-layer BMS: OV, UV, OC, SC, temperature protection

WiFi / 4G 双模通信，OTA 远程升级WiFi / 4G dual-mode communication with OTA upgrades

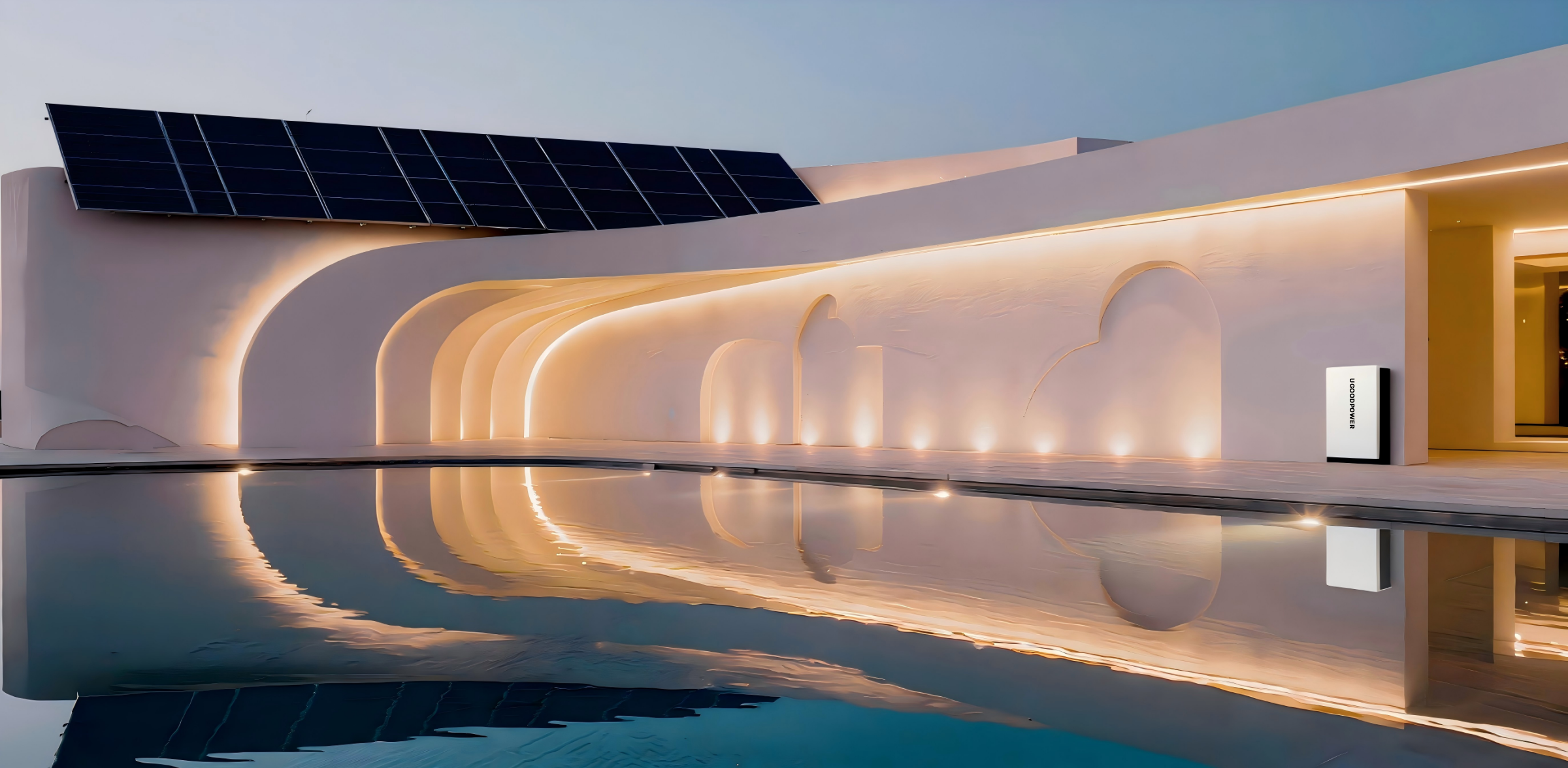

现代别墅 · 全天候绿色供电Modern Villa · 24/7 Green Power

屋顶光伏 + UGOOD 储能系统，白天发电储能，夜晚释放电能，实现家庭能源自给自足。Rooftop PV + UGOOD storage generates power by day and releases energy at night for complete energy self-sufficiency.

光伏接入Solar

16kWh 备电Backup

全屋负载Whole House

不只储能，更是生活方式的升级More Than Storage — A Lifestyle Upgrade

无论是应对电网停电的紧急备电，还是日常削峰填谷的电费优化，UGOOD 储能系统都以静音、安全、优雅的姿态融入您的居住环境。Whether handling emergency backup during outages or daily peak-shaving for bill optimization, the UGOOD system integrates silently, safely, and elegantly.

技术规格Technical Specifications

UGOOD-16 51.2V314Ah 16kWh 产品规格书 V1.0 核心参数摘要UGOOD-16 51.2V314Ah 16kWh Product Specification V1.0 — Key Parameters

型号ModelUGOOD-16（16kWh）

电池类型Battery ChemistryLiFePO4

标称容量Nominal Capacity314Ah

额定能量Rated Energy16.08kWh

额定电压Nominal Voltage51.2V

工作电压范围Voltage Range40V – 58.4V

最大充/放电电流Max Charge/Discharge160A

循环寿命Cycle Life≥8000 次 / Cycles

电芯组合方式Configuration16S1P

内阻Internal Resistance2mΩ – 5mΩ

通讯方式CommunicationRS485、CAN

工作温度（充电）Operating Temp (Charge)0°C – 55°C

工作温度（放电）Operating Temp (Discharge)-20°C – 55°C

储存温度Storage Temperature-20°C – 40°C

湿度Humidity≤95%（无冷凝 / non-condensing）

防护等级Protection LevelIP20

冷却方式Cooling Method自然冷却 / Natural Cooling

尺寸（L×W×H）Dimensions (L×W×H)603 × 222.5 × 979 mm

重量Weight148kg

安装方式Installation落地式 / Floor-mounted

箱体颜色Enclosure Color白色 / White

开启您的智慧储能之旅Start Your Smart Energy Storage Journey

联系我们的专业团队，获取定制化的家庭储能解决方案与详细产品资料。Contact our professional team for customized home energy storage solutions and detailed product information.
