INDUSTRIAL & COMMERCIAL ENERGY STORAGE SYSTEM

GOOD ONE 260
125kW / 260kWh 工商业储能系统125kW / 260kWh Commercial ESS

一体化户外柜设计，液冷温控，气溶胶消防，PCS+EMS+BMS全栈自研。支持10柜并机，能量密度超220kWh/m²，助力削峰填谷与可再生能源并网。 All-in-one outdoor cabinet with liquid cooling, aerosol fire suppression, and full-stack PCS+EMS+BMS. Supports 10-cabinet parallel, energy density over 220kWh/m².

125kW PCS 260kWh LiFePO4 液冷Liquid Cooling
GOOD ONE 260

核心参数Key Specifications

高集成度户外储能柜，一站式工商业储能解决方案。 Highly integrated outdoor ESS cabinet, one-stop C&I energy storage solution.

260kWh
额定能量Rated Energy
261kWh 磷酸铁锂储能系统261kWh LiFePO4 energy storage system
125kW
PCS额定功率PCS Rated Power
最大输出138kW / 200AMax output 138kW / 200A
98.5%
转换效率Peak Efficiency
三相三电平变流器技术Three-level converter technology
832V
额定电压Rated Voltage
工作范围 728~936V DCOperating range 728~936V DC
10柜Cab
并机能力Parallel Capacity
支持9+1主从并机，最大2.6MWh9+1 master-slave, up to 2.6MWh
IP54
防护等级Protection Level
户外柜防尘防水设计Outdoor cabinet dust/water proof
220+kWh/m²
能量密度Energy Density
超高能量密度，节省占地面积Ultra-high density saves floor space
1175mm
尺寸(宽)Width
1175×1303×2228 mm / 约2480kg1175×1303×2228 mm / ~2480kg

核心优势Key Features

一体化设计，极致安全，智能运维。 Integrated design, ultimate safety, intelligent O&M.

高集成度High Integration
电池+PCS+EMS+BMS+液冷+消防一体化户外柜，预装设计减少现场安装成本。Battery+PCS+EMS+BMS+cooling+fire suppression in one cabinet. Pre-installed design reduces on-site installation costs.
极致安全Ultimate Safety
多级消防：气溶胶灭火+防爆泄压板+UL94-V0阻燃隔热。多级BMS保护：熔断器+接触器+隔离开关互锁。Multi-tier fire protection: aerosol suppression, explosion vent, UL94-V0 panels. Multi-level BMS: fuse, contactor, isolator interlock.
智能液冷Smart Liquid Cooling
5kW制冷量液冷机组，智能温控自动调节电池温度，延长循环寿命。辅助能耗更低。5kW cooling capacity, intelligent temperature control auto-adjusts to cell conditions, extending cycle life with lower auxiliary power.
标准化设计Standard Design
兼容20尺高柜集装箱和海运标准，底部进线设计，AC输出和通讯集中布局，安装便捷。Compatible with 20ft HC containers and maritime shipping. Bottom inlet, centralized AC and comms interfaces for easy installation.
UPS备电UPS Backup
低压辅助系统在断电后可持续运行2小时，确保BMS和消防系统可靠工作。Low-voltage auxiliary system operates for 2 hours after power outage, ensuring BMS and fire protection reliability.
智能EMSSmart EMS
支持削峰填谷、需量调节、功率跟踪、防逆流。多层安全认证，4路485+2路CAN+2路以太网。Peak shaving, demand response, power tracking, anti-backflow. Multi-layer security, 4xRS485+2xCAN+2xEthernet.

系统架构System Architecture

GOOD ONE-260 户外柜集成电池系统、PCS、EMS、配电、液冷和消防六大子系统。 GOOD ONE-260 outdoor cabinet integrates battery, PCS, EMS, power distribution, liquid cooling and fire suppression.

GOOD ONE 260 System
GOOD ONE-260 户外储能柜GOOD ONE-260 Outdoor Cabinet
集成PCS+电池+EMS+配电+液冷+消防六大子系统Integrates PCS+battery+EMS+power distribution+cooling+fire suppression
PCS 125kW
260kWh
液冷Liquid Cooling
气溶胶消防Aerosol Fire

应用场景Applications

广泛应用于工商业储能、可再生能源并网、微电网和智能电网管理。 Widely used in C&I energy storage, renewable integration, microgrids and smart grid management.

削峰填谷Peak Shaving
利用分时电价差，低谷充电高峰放电，显著降低用电成本。Charge at low prices, discharge at peak prices to reduce electricity costs.
光储融合Solar+Storage
配合光伏发电，平滑功率波动，提升可再生能源消纳率。Smooth solar power fluctuations and increase renewable energy utilization.
需量响应Demand Response
精准控制充放电功率，参与电网调峰调频，获取辅助服务收益。Precise power control for grid peak shaving and ancillary service revenue.
备用电源Backup Power
电网停电时提供应急备电，保障关键负载持续运行。Provide emergency backup power during grid outages for critical loads.

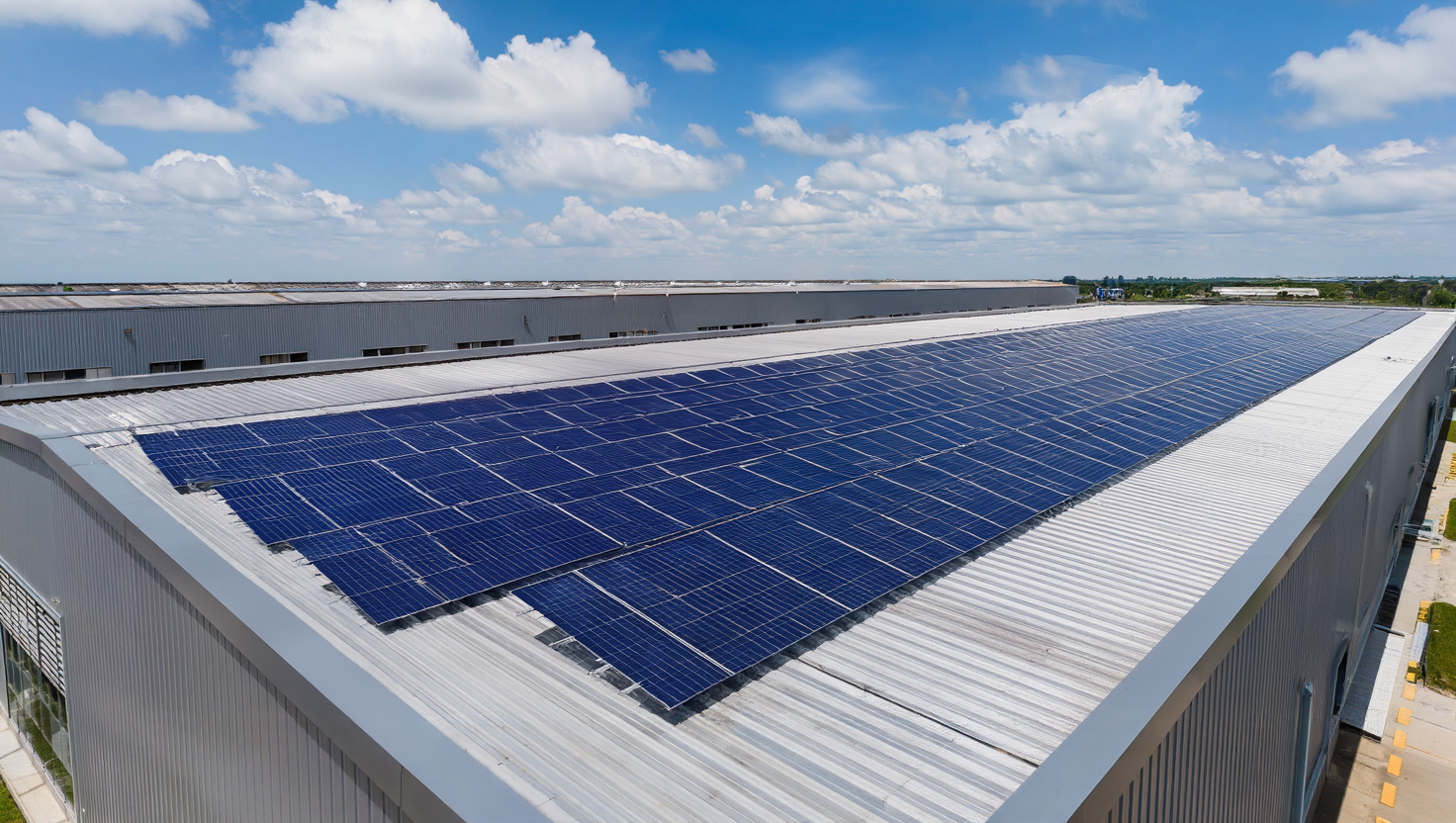

Application Scenario
工商业储能 · 绿色能源转型C&I Energy Storage · Green Transition
GOOD ONE-260 适用于工厂、园区、充电站等工商业场景，助力企业降低用电成本，提升能源自给率。GOOD ONE-260 for factories, parks, charging stations to reduce costs and improve energy self-sufficiency.

技术规格Technical Specifications

UGOOD GOOD ONE-260 125kW/260kWh 产品规格书 REV:A2 核心参数UGOOD GOOD ONE-260 125kW/260kWh Specification REV:A2 Key Parameters

型号ModelGOOD ONE-260
电芯类型Cell TypeLiFePO4 314Ah 3.2V
系统配置Configuration260S1P
额定电压Rated Voltage832V DC
工作电压范围Voltage Range728 ~ 936V DC
额定能量Rated Energy261 kWh
持续充/放电电流Cont. Charge/Discharge157A
最大充/放电电流Max Charge/Discharge194A
PCS额定功率PCS Rated Power125 kW
PCS最大输出PCS Max Output138 kW / 200A
转换效率Peak Efficiency≥98.5%
额定输出电压Rated Output Voltage230/400V AC
并机能力Parallel Capacity10 cabinets (9+1)
冷却方式Cooling MethodLiquid Cooling
消防系统Fire SuppressionAerosol
防护等级Protection LevelIP54
工作温度Operating Temp-20 ~ 45°C
工作海拔Working Altitude≤2000m
噪音Noise Level≤75 dB
尺寸(LxWxH)Dimensions1175 x 1303 x 2228 mm
重量Weight≈2480 kg
